Clarifiers

Primary purpose of clarification is to remove relatively small quantity of fine suspended particles and produce clear effluent. The basic concept of clarifier is, it consist of a tank, means for introducing the feed with minimum turbulence, a drive actuated rake mechanism for moving settled solids to discharge point, a means for removing thickened solids, and a means for removing clarified liquid.

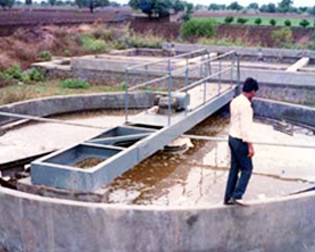

Bridge supported centrally driven thickeners are common up to 15 m dia side given figure shows a typical unit. The drive consist of a worm gear normally mounted on precision bearings and driven through one or more gear reduction by a motor. A vertical driving shaft is attached to the main gear. Normally two long and two short arms are attached to centre shaft. The long arms have sufficient blades to scrape the bottom twice per revolution. Short arms are provided to rake the inner area for times per revolution and balance mechanism. Cone scrapers are bolted to the centre shaft to prevent plugging of bottom discharge cone.
